_________________JML ELECTRONICS STUDY Lab#2_________________

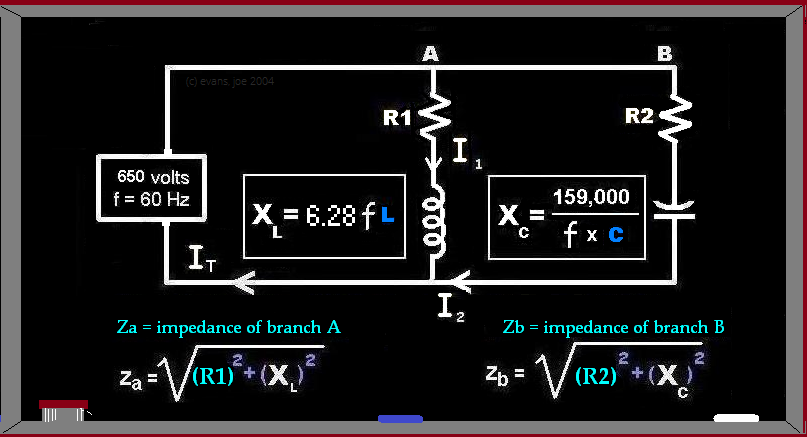

1.    Previous curcuits were DC (direct currents), this is an example of an AC alternating
current curcuit. In this curcuit we have a coil and a capacitor. Reactance is the
resistive component of a curcuit element.

inductive reactance                                               capacitive reactance

Ex:1     Try R1=30   R2=5   L=.106   C=220
 R1 = ohms.       R2 = ohms.       L = henries.       C = microfarads.


XL = (6.28)*60*L = ohms.     XC = 159000/(C*60) = ohms.
Za = ohms.     Zb = ohms.
I1=650v/Za=amps   I2=650v/Zb=amps    IT = sqrt((ITx)**2+(ITy)**2)=amps
For better explanation of above formula, click homework button!
ZT=650/IT=ohms.
Ex:2     Try R1=3   R2=3   L=3   C=3
Ex:3     Try R1=0   R2=0   L=3   C=3
Did you notice no change in Ex:2 and Ex:3? Why?
Ex:4     Try R1=0   R2=0   L=.106   C=220
